SHVS-36DA Fully Automatic T-Shirt Bag Making Machine

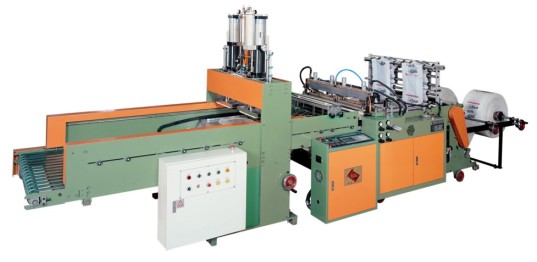

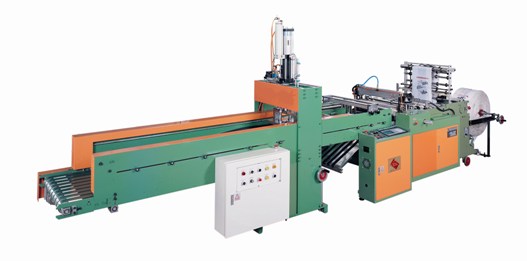

SHVS-36DA Dual Printing Sensor SHVS-22A Single Printing Sensor

More Information





Standard Part List
 Dual Servo Control Panel (Made In Taiwan)

 "MARTO" 5 Tone Boosting Cylinder * 2 Set
 YASKAWA Servo Pack ( 4.4 KW) * 2 PCS

 "DELTA" 0.4KW AC Motor Driver * 2 PCS

 Germen Made "SICK" KT5G Printing Sensor * 2 PCS

 "FUKUTA" 1H 4P AC Motor * 1 PCS
 "DELTA" 0.75KW AC Motor Driver * 2 PCS

 "FUKUTA" 1/2HP 4 Phose AC Motor * 1 PCS
 "DELTA" 2.2KW AC Motor Driver * 1 PCS

  "DELTA" PLC Controller * 1 PCS

 "FUKUTA" 1H 6P AC Motor * 2 PCS

 "Air Tac"  Pneumatic Air Valve * 1 SET

 "FUKUTA" 3H 4P AC Motor * 1 PCS  Spinning Cutting Cushion,extending the life Time of Cushion
 Janpanes Made "KOGANEI" Pneumatic Air Valve * 1 SET

 Automatically stop when running out of film

 "Air Tac"  Pneumatic Air Valve * 1 SET

 Automatically stop when film feeding blocks or bags jam

 Independent Temperature Controller * 3 SET

 Automatically stop when color scanning misses

 Sealing Knife Shifting Device
  Hot Pins & Cold Pins



Optional Accessories

 Folding Device For Punching Unit

  Center Heated Punching Device
 Waste Collecting Conveyor



SPECIFICATION

MODEL

 MAX.WIDTH
 		MAX. LENGTH
 CONVERTING THICKNESS
 ACCURACY LENGTH(m/m)
 SPEED (PCS/MIN)
 SERVO MOTOR/KW
 HEATER
 POWER REQUIRED
 DIAMENSION
L * W * H (CM)
 MACHINE WEIGHT
SHVS-22A 330 mm 700 mm 0.008 - 0.035 mm ± 1 Max. 160 3.0 KW 2.0 KW 2.2 KW 710*142*171 1050 KG
SHVS-30A 430 mm 700 mm 0.008 - 0.035 mm ± 1 Max. 140 4.4 KW 3.0 KW 3.2 KW 710*172*171 1300 KG
SHVS-30DA 330 mm 700 mm 0.008 - 0.035 mm ± 1 Max. 200 3.0 KW 3.5 KW 4.0 KW 710*193*171 1450 KG
SHVS-36A 350 mm 700 mm 0.008 - 0.035 mm ± 1 Max. 140 4.4 KW 4.0 KW 5.5 KW 710*219*171 1550kG
SHVS-36DA 430 mm 700 mm 0.008 - 0.035 mm ± 1 Max. 200 3.0 KW 5.5 KW 5.5 KW 710*219*171 1650 KG
