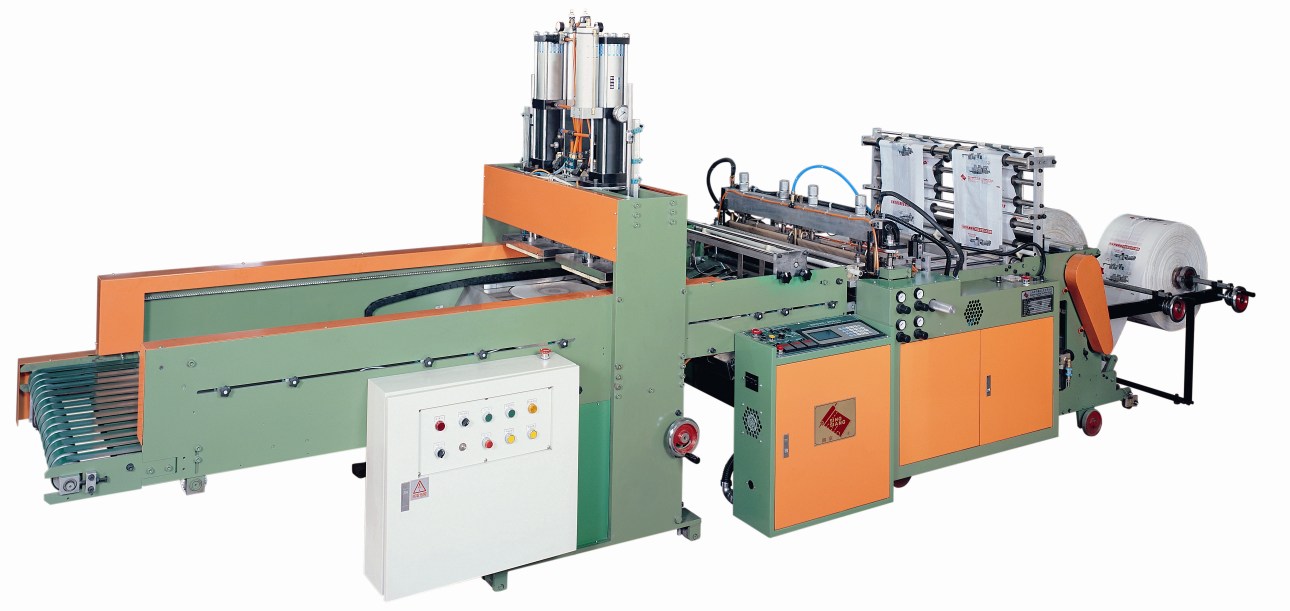

SHVS-36DA Fully Automatic T-Shirt Bag Making Machine





Optional Accessories

 Folding Device For Punching Unit

  Center Heated Punching Device
 Waste Collecting Conveyor



SPECIFICATION

MODEL

 MAX.WIDTH
 		MAX. LENGTH
 CONVERTING THICKNESS
 ACCURACY LENGTH(m/m)
 SPEED (PCS/MIN)
 SERVO MOTOR/KW
 HEATER
 POWER REQUIRED
 DIAMENSION
L * W * H (CM)
 MACHINE WEIGHT
SHVS-22A 330 mm 700 mm 0.008 - 0.035 mm ± 1 Max. 160 3.0 KW 2.0 KW 2.2 KW 710*142*171 1050 KG
SHVS-30A 430 mm 700 mm 0.008 - 0.035 mm ± 1 Max. 140 4.4 KW 3.0 KW 3.2 KW 710*172*171 1300 KG
SHVS-30DA 330 mm 700 mm 0.008 - 0.035 mm ± 1 Max. 200 3.0 KW 3.5 KW 4.0 KW 710*193*171 1450 KG
SHVS-36A 350 mm 700 mm 0.008 - 0.035 mm ± 1 Max. 140 4.4 KW 4.0 KW 5.5 KW 710*219*171 1550kG
SHVS-36DA 430 mm 700 mm 0.008 - 0.035 mm ± 1 Max. 200 3.0 KW 5.5 KW 5.5 KW 710*219*171 1650 KG
