Specialized In Converting & Packaging Equipment Manufacturing

BAGMAKING MACHINERY SOLUTIONS

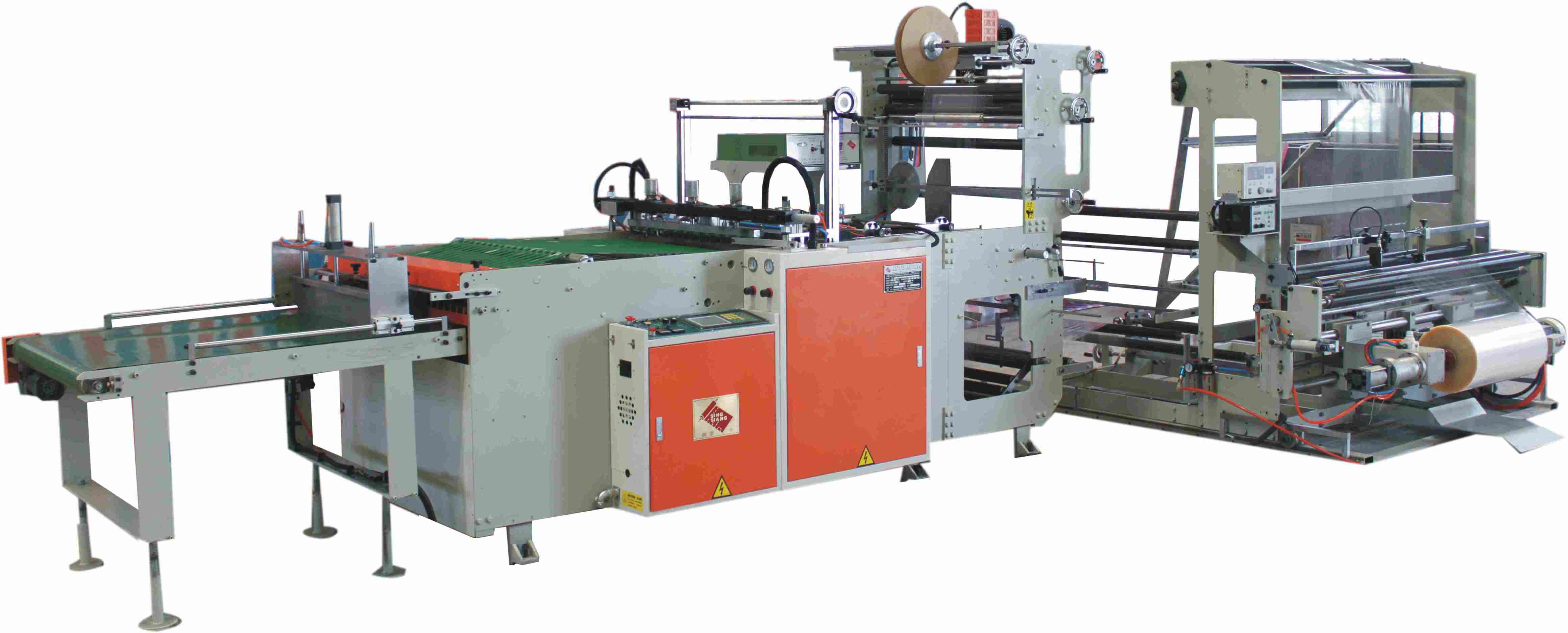

AJSS-800-WC Universal Welding Machine for

Side Weld Round Bottom & Wicketers Bag

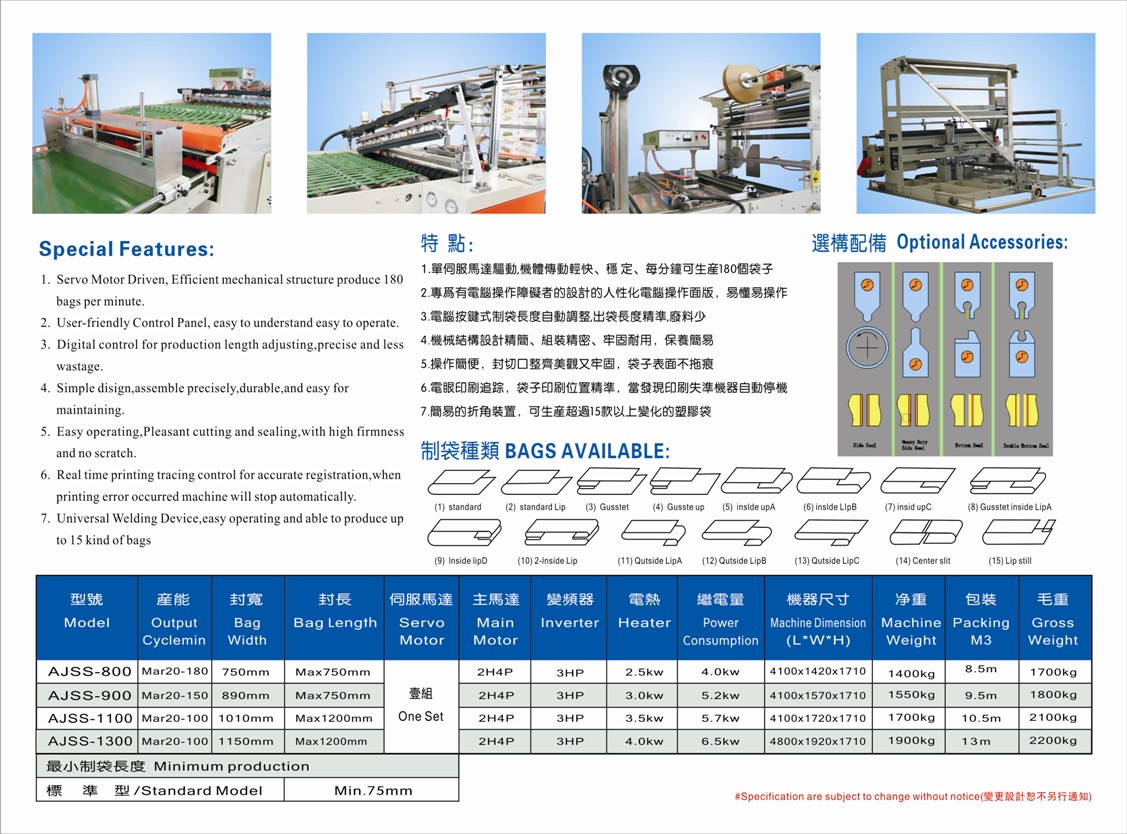

Special Features

 Servo Motor Driven, Efficient mechanical structure

 Automatically stop when running out of film

 Fully Automatic, Large Screen , Easy to read, User Friendly

 Automatically stop when film feeding blocks or bags jam

 Efficient output, less man power required

 Automatically stop when The temperature not reaching setting.

 Digital setup, accurate registration, less waste

 Automatically stop when the bags become super-imposed or overlapped

 Pleasant Cutting and Sealing, with high firmness



 Cutting Blade is very lasting, and easy for adjustment



 Imported high speed conveyor belt for long service life.



Convenient to change for various bag shapes.





Various unwinder and rewinder to meet requirements.



Ruggedly constructed for maximum stability during high speed operations.




Optional Accessories

Round hole punching device.

Bag dividing device.

Butterfly hole punching device.

Automatic hot melt coater.

Automatic product outfeed conveyor.

Ultrasonic longitudinal sealing device.

Edge positioning controller (EPC).

Zipper device

Upper and lower line heating device.



Hem sealing device

Solid edge device





Application

 It's available for general side sealing plastic bag, such as OPP bags, hanging Bags, zipper bags, carry bags, book cover, Shirt bags etc.This machine also available for special design.





SPECIFICATION

MODEL


MAX.WIDTH
MAX.LENGTH
CONVERTING THICKNESS
ACCURACY LENGTH(m/m)
SPEED (PCS/MIN)
SERVO MOTOR/KW
HEATER
POWER REQUIRED
DIAMENSION
L * W * H (CM)
MACHINE WEIGHT
AJSS-800 75~750 mm 700 mm 0.015 - 0.08 mm ± 1 Max. 210 1.5 KW 2.0 KW 2.2 KW 410*142*171 1050 KG
AJSS-900 75~750 mm 850 mm 0.015 - 0.08 mm ± 1 Max. 180 2.0 KW 2.5 KW 2.5 KW 410*157*171 1150 KG
