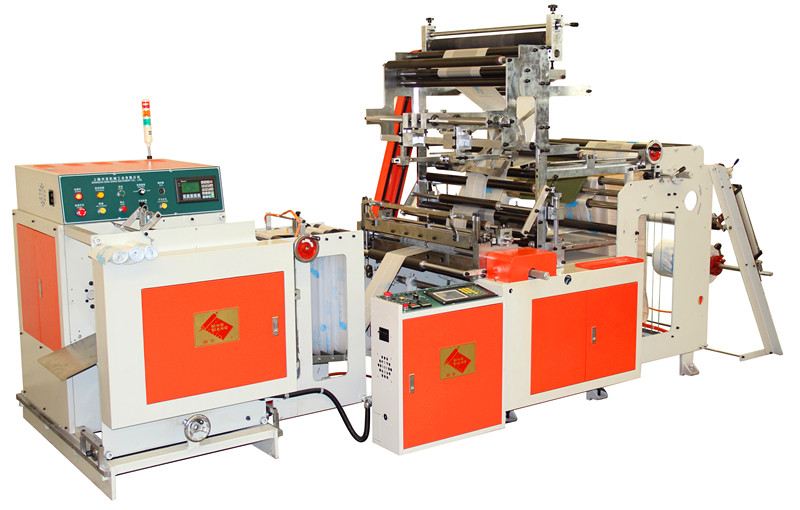

SHPF-36+HRC Fully Automatic C Fold Coreless Bag on Rolls






Main Furtures

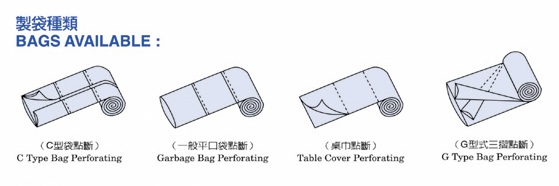

Bottom Sealing Bag on Roll
 Save Floor Space than traditional V Folder
 Automatic Change Roll, Non Stop Production, Save labor



SPECIFICATION

MODEL

 MAX.WIDTH
 		MAX. LENGTH
 CONVERTING THICKNESS
 ACCURACY LENGTH(m/m)
 SPEED (PCS/MIN)
 SERVO MOTOR/KW
 HEATER
 POWER REQUIRED
 DIAMENSION
L * W * H (CM)
 MACHINE WEIGHT
SHPF-30 750MM 1100MM 0.018 - 0.035 mm ± 1 Max. 90 2.0 KW 2.5 KW 3.0 KW 330*160*209

147*170*120

 2300 KG

SHPF-36

940MM

 1100MM 0.018 - 0.035 mm ± 1 Max. 90 2.0 KW 3.0 KW 3.2 KW 330*175*209

147*170*120

 2400 KG

SHPF-42

 1050MM 1200MM 0.018 - 0.035 mm ± 1 Max. 75 3.0 KW 4.0 KW 5.5 KW 330*193*209

147*175*120

 2600kG



Sing Sinag Machinery Provide Great Diversity of Plastic Bag Making Machine
