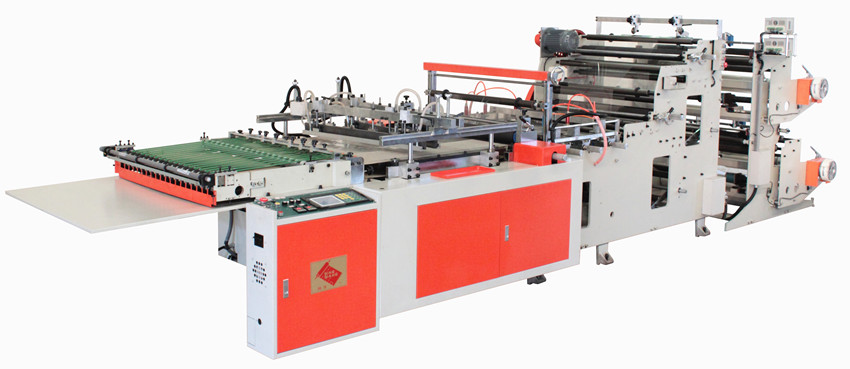

SHFS-36  Converting Machine for

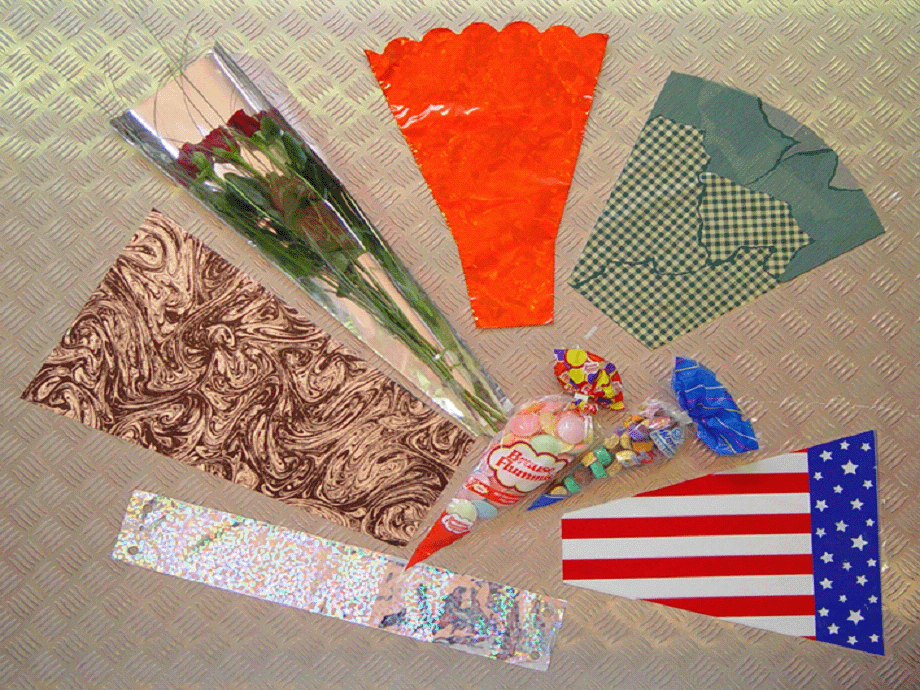

Cone Shaped Candy Bags, Flower Sleeves, Potted Plant Sleeves, Sealed Bottom V-Sleeves




Conical bag machine for the production of conical bags for flowers, potted plants and candy bags.

Dependent on product and on achievement we manufacture both versions:
1.) Varioconic Classic
2.) Varioconic Wicket

We offer solutions specifically assembled with additional devices to your needs.

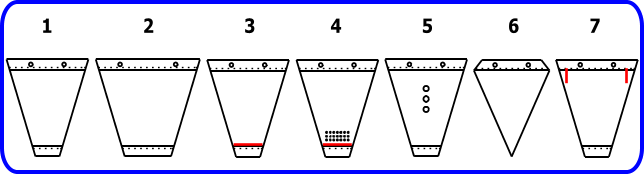

VarioWicketBeutel

  1) standard bag
2) BIG BAGS with TO up to 700mm (only Varioconic Classic)
3) standard bag with additional bottom sealer
4) standard bag with additional bottom sealer and drainage holes
5) standard bag with additional ventilation holes
6) candy bag with additional V-cutter (see edge of clap)
7) standard bag with additional seal for „automatc filling“



機 械 規 格 / SPECIFICATION

MODEL

 CONVERTING THICKNESS
 ACCURACY LENGTH(m/m)
 SPEED (PCS/MIN)
 SERVO MOTOR/KW
 HEATER
 POWER REQUIRED
 DIAMENSION
L * W * H (CM)
 MACHINE WEIGHT
SHFS-30 0.015 - 0.08 mm ± 1 Max. 130 * 2 1.5 KW 2.0 KW 2.2 KW 410*142*171 1250 KG
SHFS-36 0.015 - 0.08 mm Max. 130 *2 2.0 KW 2.5 KW 2.5 KW 410*157*171 1350 KG

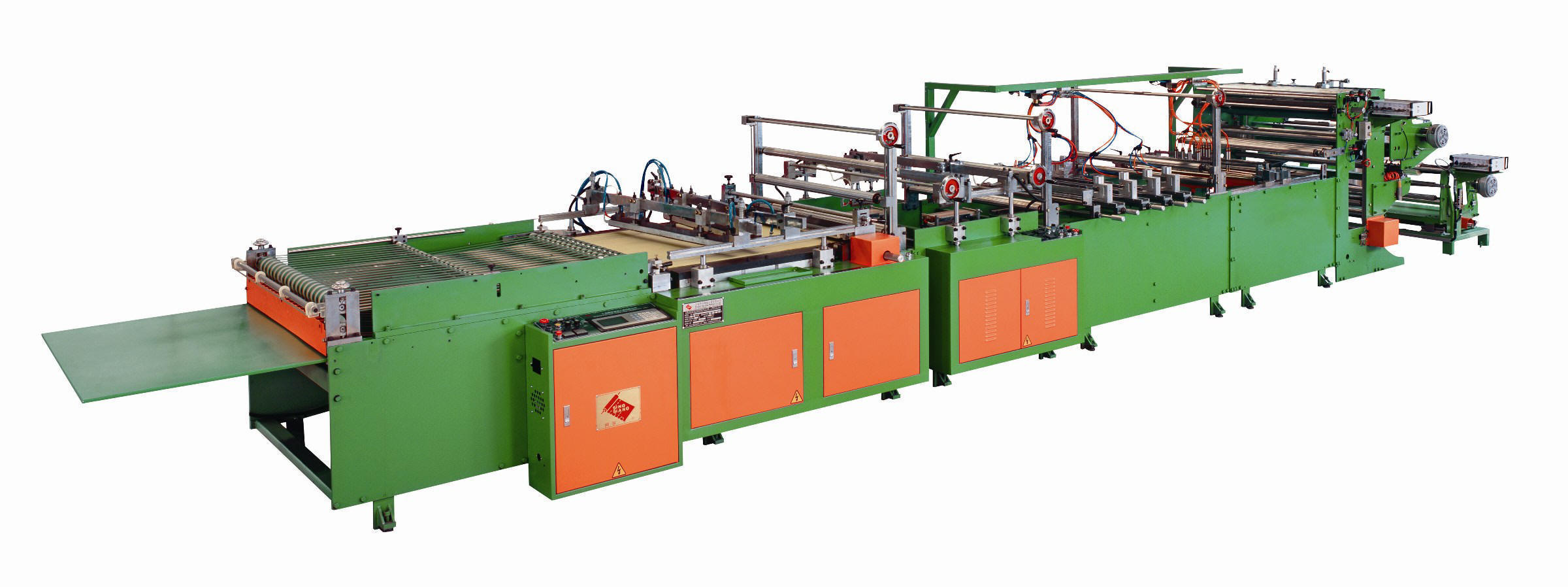

SHFS-42 0.015 - 0.2 mm Max. 120 *2 3.0 KW 3.5 KW 3.2 KW 450*172*171 1500 KG
SHFS-50 0.015 - 0.2 mm Max. 100 *2 4.4 KW 4.0 KW 4.0 KW 450*193*171 1650 KG
SHFS-60 0.015 - 0.2 mm Max. 90 *2 4.4 KW 5.5 KW 5.5 KW 450*219*171 1850 KG



MODEL
  W Max.  A Min.  L Max.

 SHFS-30 500 mm 40 mm 700 mm
 SHFS-36 500 mm 40 mm 850 mm
 SHFS-42 580 mm 55 mm 1000 mm
 SHFS-50 660 mm 55 mm 1100 mm
 SHFS-60 750 mm 55 mm 1450 mm
