SHCG-30GL PE Plastic Glove Bag Making Machine




Special Features

 Servo Motor Driven, Efficient mechanical structure

 Automatically stop when running out of film

 Fully Automatic, Large Screen , Easy to read, User Friendly

 Automatically stop when film feeding blocks or bags jam

 Efficient output, less man power required

 Automatically stop when The temperature not reaching setting.

 Digital setup, accurate registration, less waste

 Automatically stop when the bags become super-imposed or overlapped

 Pleasant Cutting and Sealing, with high firmness



 Cutting Blade is very lasting, and easy for adjustment








Optional Accessories

Dual Servo Dual Printing Senson System

 Garment Bags Sealing Device

 Extra Rear Feeding Rollers

 Perforating Bags Production Device

 Free Tension Sealing Blade (for Thick Bags)

 Bottom Sealing T-shirt Bag making Device

 Air Punching Unit

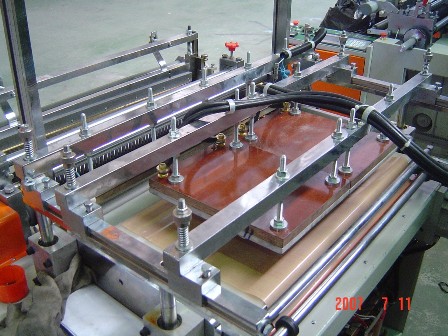

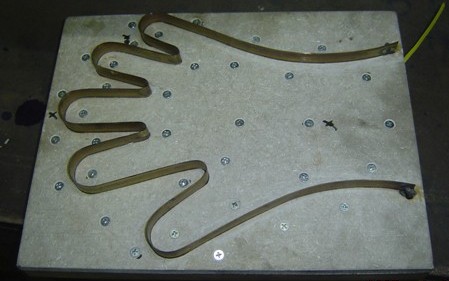

 Glove Bag Sealing Device

 Conveyor Stacker












SPECIFICATION

MODEL


 MAX. WIDTH
 		 MAX. LENGTH
 		 CONVERTING THICKNESS
 		 ACCURACY LENGTH(m/m)
 		 SPEED (PCS/MIN)
 		 SERVO MOTOR/KW
 		 HEATER
 		 POWER REQUIRED
 		 DIAMENSION
L * W * H (CM)
 		 MACHINE WEIGHT

SHCG-20 480 mm 1200 mm 0.009 - 0.1 mm ± 1 10 - 120 1.0 KW 1.5 KW 2.8 KW 330*117*144 700 KG
SHCG-24 580 mm 1200 mm 0.009 - 0.1 mm ± 1 10 - 120 1.0 KW 1.8 KW 3.5 KW 330*127*144 800 KG
SHCG-30 750 mm 1200 mm 0.01 - 0.1 mm ± 1 10 - 120 1.5 KW 2.0 KW 4.0 KW 330*142*144 900 KG
