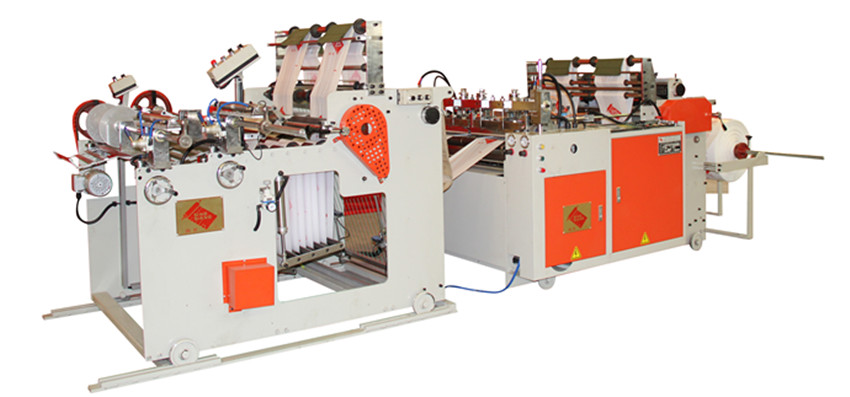

AJPC-36D  High Speed Semi Automatic Bag on Roll Machine



AJPC-36D High Speed Bag on Roll 马吃呢

Video for Model : AJPC-36D

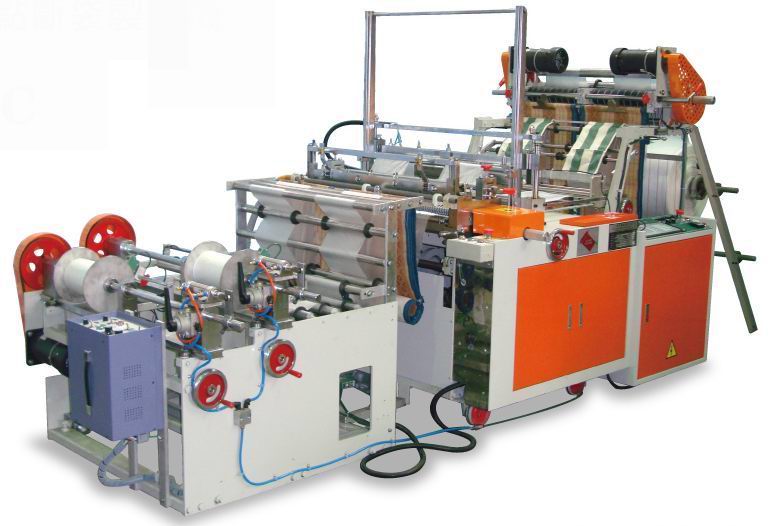

 MODEL : SHPC-36 Standard Type Bag on roll Machine Main Feature : Available for Bottom Sealing Flat Bag Production









Main Furtures

Independent Deal Servo Feeding System, can produce Two Different Length/Printing Bag on one machine at same time
Available in Coreless Production and With Core Production.
Very easy for Roll Changing


SPECIFICATION For Dual Servo Bag On Roll

MODEL

MAX.WIDTH MAX.LENGTH CONVERTING THICKNESS ACCURACY LENGTH(m/m) SPEED (PCS/MIN) SERVO MOTOR/KW HEATER POWER REQUIRED DIAMENSION
L * W * H (CM)

MACHINE WEIGHT
SHPC-36D 370 mm *2 760 mm 0.012-0.15 mm 1 10-110 2.0 KW 2.2 KW 4.5 KW 420*157*165 1000 KG
SHPC-42d 450 mm *2 760 mm 0.012-0.15 mm 1 10 - 95 3.0 KW 2.5 KW 5.0 KW 420*173*165 1100 KG



SPECIFICATION For Single Servo Bag On Roll

MODEL

MAX.WIDTH MAX.LENGTH CONVERTING THICKNESS ACCURACY LENGTH(m/m) SPEED (PCS/MIN) SERVO MOTOR/KW HEATER POWER REQUIRED DIAMENSION
L * W * H (CM)
MACHINE WEIGHT
SHPC-20 480 mm 1200 mm 0.009 - 0.1 mm 1 10 - 120 1.0 KW 1.5 KW 2.8 KW 330*117*144 700 KG
SHPC-24 580 mm 1200 mm 0.009 - 0.1 mm 1 10 - 120 1.0 KW 1.8 KW 3.5 KW 330*127*144 800 KG
SHPC-30 750 mm 1200 mm 0.01 - 0.1 mm 1 10 - 120 1.5 KW 2.0 KW 4.0 KW 330*142*144 900 KG
SHPC-36 890 mm 1800 mm 0.012-0.15 mm 1 10-110 2.0 KW 2.2 KW 4.5 KW 420*157*165 1000 KG
SHPC-42 1050 mm 1800 mm 0.012-0.15 mm 1 10 - 95 3.0 KW 2.5 KW 5.0 KW 420*173*165 1100 KG
SHPC-50 1250 mm 3000 mm 0.012-0.15 mm 2 10 - 80 4.4 KW 3.0 KW 5.5KW 420*193*165 1200 KG
SHPC-60 1500 mm 3000 mm 0.035-0.15 mm 2 10 - 70 4.4 KW 3.80 KW 6.0 KW 420*219*165 1300 KG
SHPC-75 1880 mm 4000 mm 0.035-0.15 mm 2 10 - 50 4.4 KW 4.3 KW 6.8 KW 420*254*165 1400 KG
SHPC-90 2250 mm 4000 mm 0.035-0.15 mm 2 10 - 40 4.4 KW 5.0 KW 7.5 KW 450*292*180 1650 KG
SHPC-120 3000 mm 5000 mm 0.035-0.15 mm 2 10 - 30 4.4 KW 6.5 KW 8.2 KW 450*368*180 2100 KG

Sing Sinag Machinery Provide Great Diversity of Plastic Bag Making Machine
