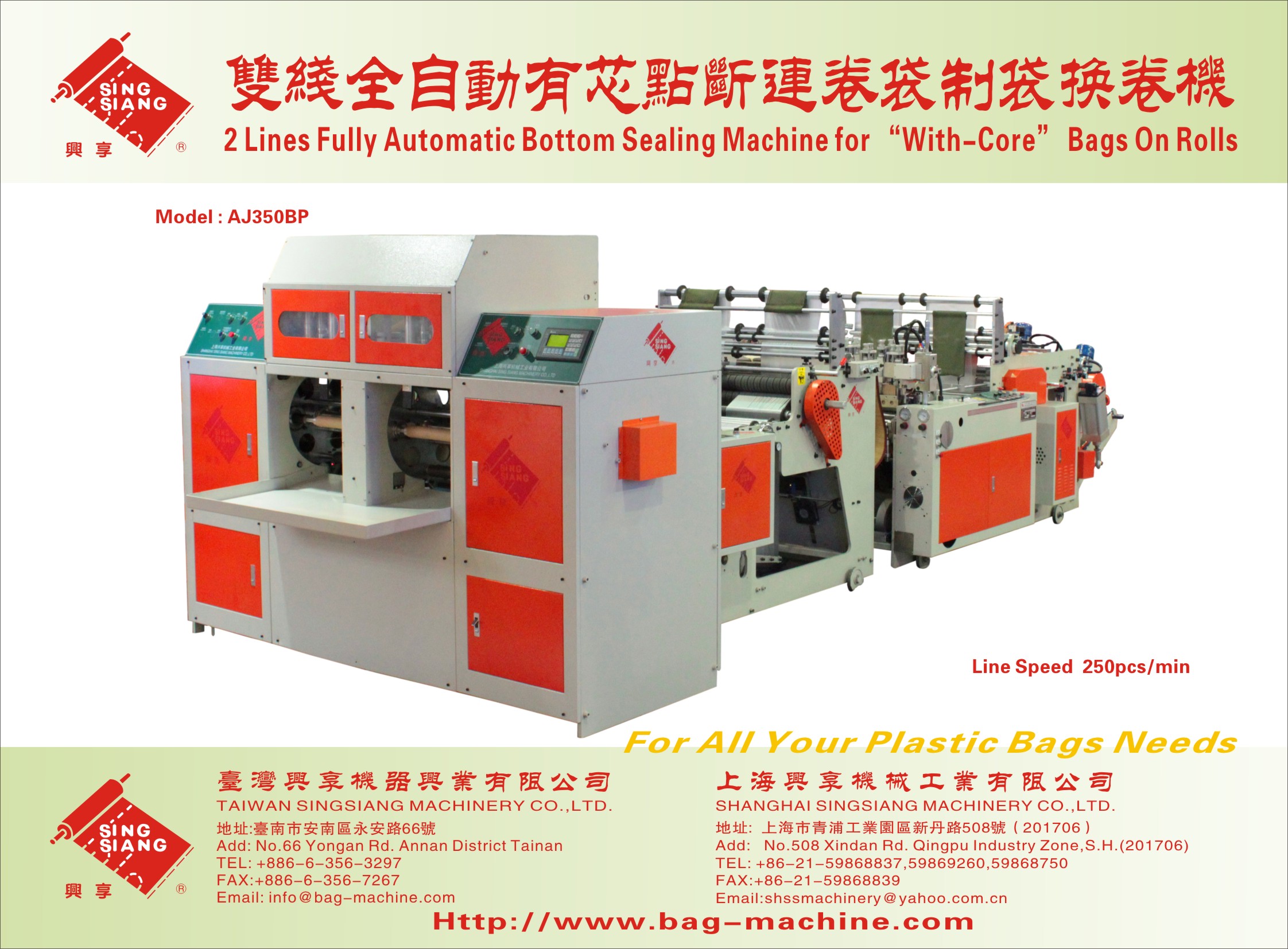

2 Lines Fully Automatic Bottom Sealing Bags on Roll Machine With Fully Automatic Paper Core Change Winding Station

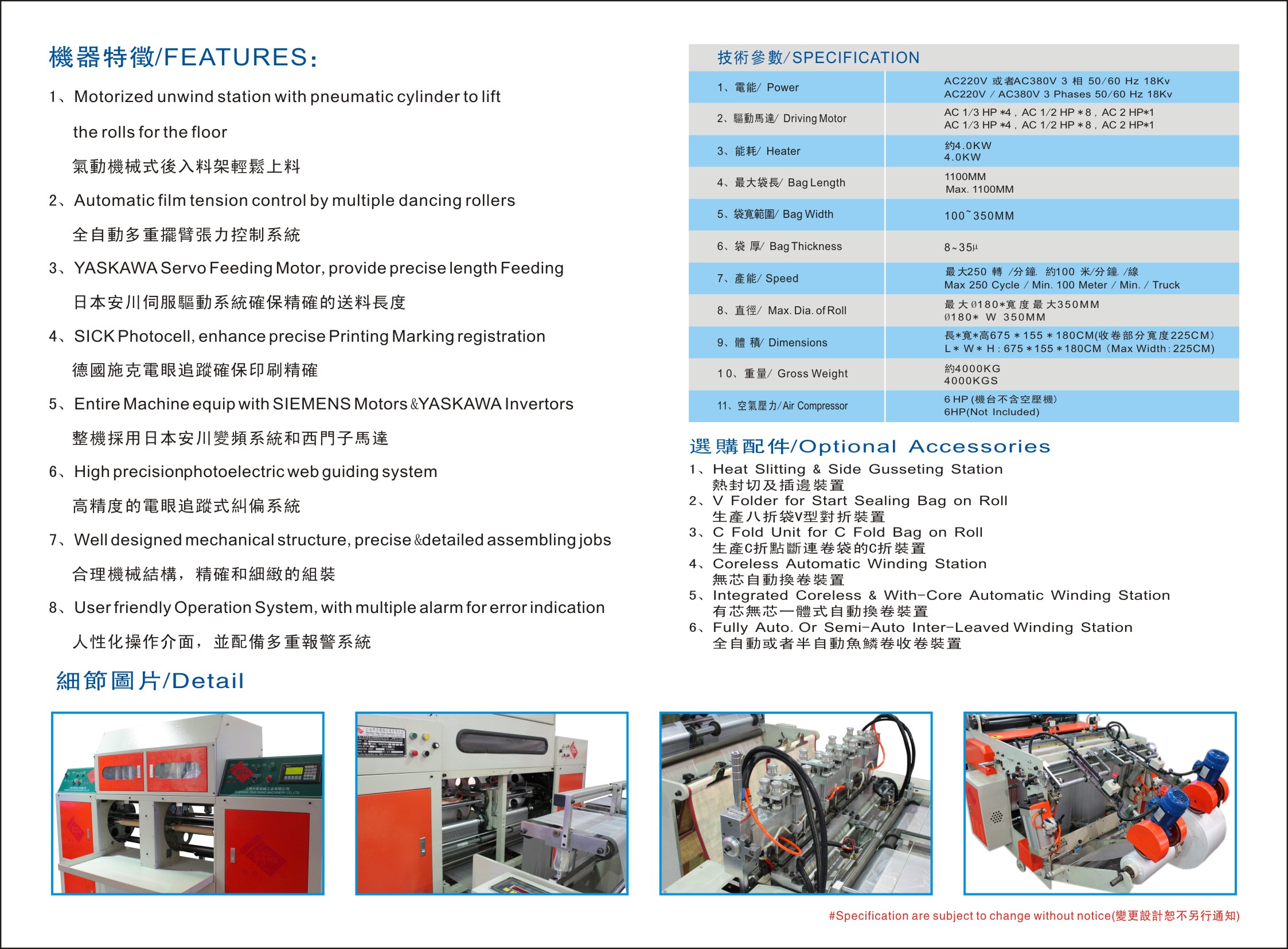

 SPECIFICATION

MODEL


MAX.WIDTH
MAX.LENGTH
CONVERTING THICKNESS
ACCURACY LENGTH(m/m)
SPEED (Meter/MIN)
SERVO MOTOR/KW
HEATER
POWER REQUIRED
DIAMENSION
L * W * H (CM)
MACHINE WEIGHT
AJ-350BP 350MM *2 1100 mm 0.008 - 0.035 mm ± 1 Max. 100M 3.0 KW 2000 W 4.0 KW 675*155*180 4000 KG

AJ-350BP

2 Lines Fully Automatic Bottom Sealing Bags on Roll Machine

With Fully Automatic Paper Core Change Winding Station
